Mini Split Ac/Heating System 12000 BTU review

Are you trying to decide if the Mini Split Ac/Heating System – 12000 BTU Ductless Mini Split Air Conditioner with Heat Pump, 19 SEER2 115V Energy Efficient Ac Unit Up to 750 Sq.Ft with Installation Kit is the right fit for your space?

This image is property of Amazon.com.

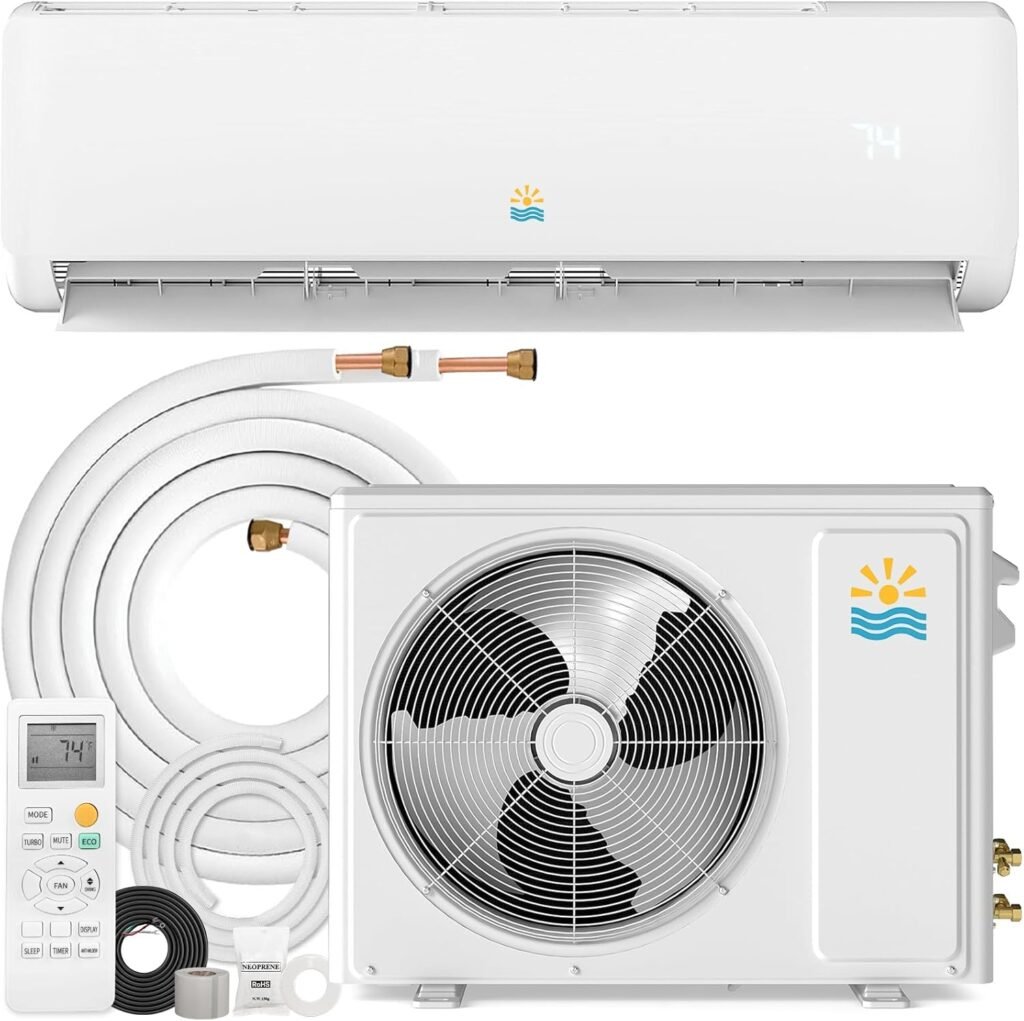

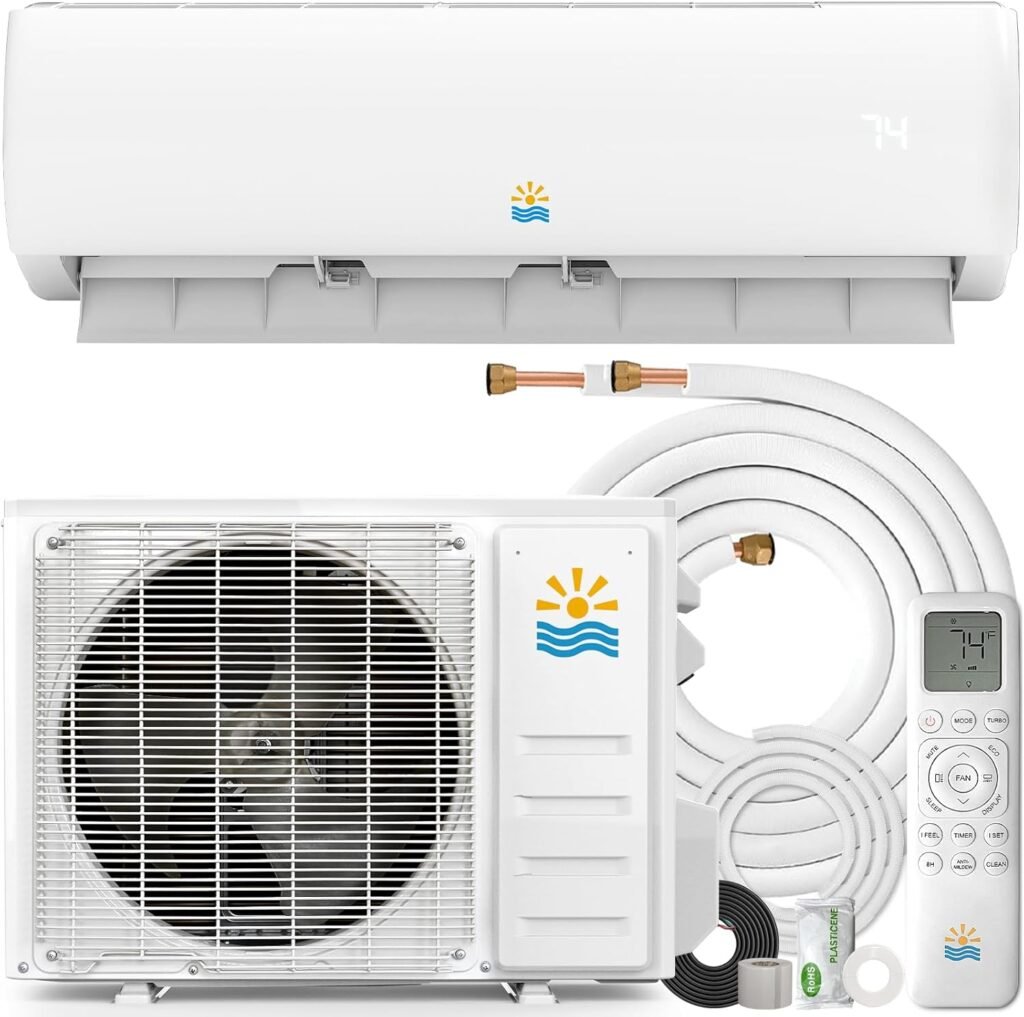

Product Overview: Mini Split Ac/Heating System – 12000 BTU Ductless Mini Split Air Conditioner with Heat Pump, 19 SEER2 115V Energy Efficient Ac Unit Up to 750 Sq.Ft with Installation Kit

This mini split combines a 12,000 BTU cooling capacity with a 12,500 BTU heating capacity, making it a true year-round climate solution for spaces up to roughly 750 square feet. You’ll get inverter-based heat pump technology, efficient SEER2/HSPF2 ratings, multiple operating modes, and a basic installation kit to get started.

[aiwm-amazon-card title=”Mini Split Ac/Heating System – 12000 BTU Ductless Mini Split Air Conditioner with Heat Pump, 19 SEER2 115V Energy Efficient Ac Unit Up to 750 Sq.Ft with Installation Kit” image_url=”https://m.media-amazon.com/images/I/71xHIAue6vL._AC_SL1500_.jpg” product_url=”https://www.amazon.com/dp/B0F372CP83?tag=priemierac-20″ original_price=”” discounted_price=”0.00″ currency=”GBP|GBP” availability=”” disclaimer=”As an Amazon Associate, I earn from qualifying purchases”]

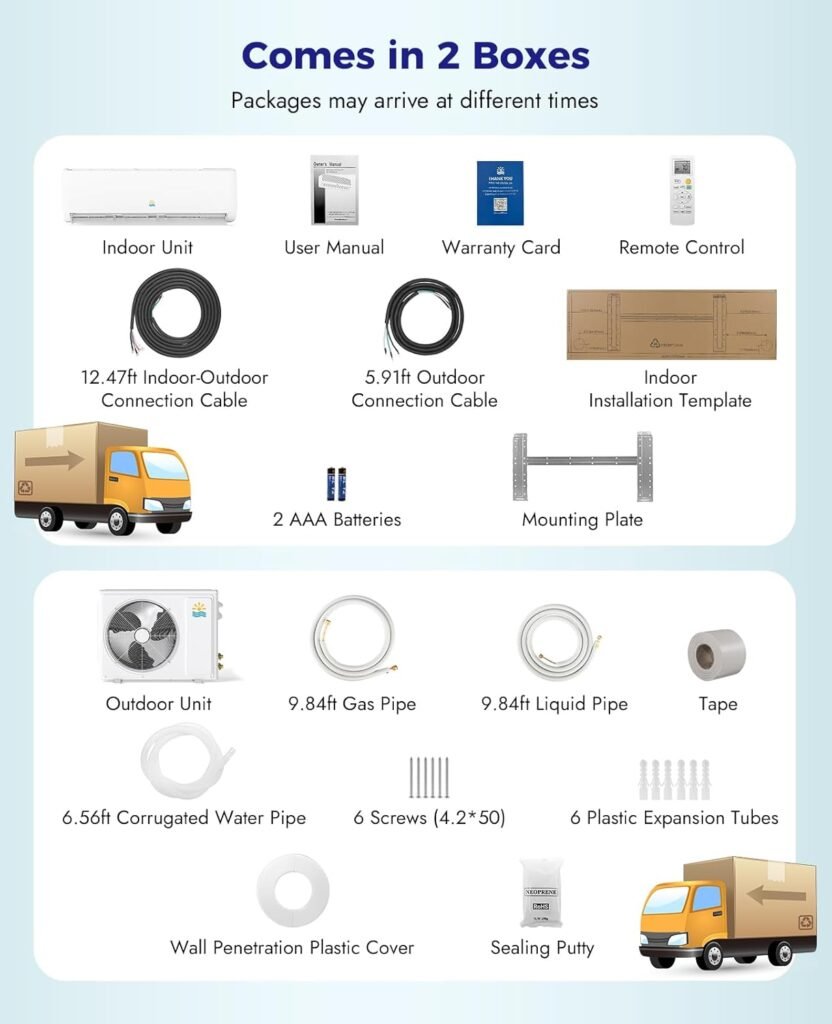

What’s included and first impressions

You’ll receive the indoor and outdoor units, the installation kit (typically including a small line set, drain line, mounting hardware, and basic electrical wiring components), a remote control, and a user manual. The package is designed to simplify setup compared with buying components separately, though you’ll still want to confirm exactly what’s in the box before installation.

Key Specifications

Below is a clear breakdown of the main specs so you can quickly understand capability and compatibility with your room and electrical setup.

This table gives you the quick specs at a glance so you can confirm capacity, efficiency, and control features before buying or installing.

Cooling Performance

The 12,000 BTU cooling capacity is a good match for medium-sized living rooms, open-plan spaces, or combined bedroom-office areas up to about 750 square feet. You’ll find the unit can reach set temperatures quickly thanks to inverter technology that adjusts compressor speed for consistent cooling without frequent on/off cycles. The up-and-down air swing and multiple fan speeds help you reduce cold spots and maintain a comfortable, even temperature.

Heating Performance

With a 12,500 BTU heating output and HSPF2 8.5 efficiency, this mini split provides reliable heat well into cool outdoor temperatures and remains operable down to 19.4°F (−7°C). The heat pump reverses refrigerant flow to heat your space efficiently, and because it’s inverter-driven, it adjusts output to match demand, helping to avoid big temperature swings and high runtime. This makes the unit practical for shoulder seasons and moderately cold climates, though you should consider backup heat in very cold regions.

Energy Efficiency and Running Costs

With SEER2 19 and HSPF2 8.5, the unit is far more efficient than many older or baseline models. That improved efficiency can translate to meaningful energy and cost savings for you over the year. For a simple example calculation: 12,000 BTU divided by SEER2 19 gives average electrical input of roughly 0.63 kW during cooling. If you run the unit 8 hours a day at an electricity rate of $0.15/kWh, that’s about $22.70 per month for cooling. Heating efficiency calculation (12,500 BTU / HSPF2 8.5) gives about 1.47 kW average input for heating, so your heating cost will depend on runtime, outdoor temperature, and local electricity pricing.

These are estimates, but they show how higher SEER2/HSPF2 ratings help lower your operational costs compared with less efficient systems. ECO mode and inverter operation further reduce energy draw during low-load periods.

This image is property of Amazon.com.

Controls, Convenience, and Smart-Like Features

The included remote control lets you change temperature, fan speed, and mode from across the room, which is convenient and straightforward. You also get a 24-hour timer and an LED display that can be turned off for nighttime comfort to avoid light disturbance. ECO mode optimizes compressor and fan operation to cut energy use, and the multiple working modes (cooling, heating, fan-only, dehumidifying) give you flexibility for seasonal needs.

If you prefer scheduling and hands-off operation, the 24-hour timer means you can set the unit to turn on or off to fit your daily routine. The LED display visibility and remote responsiveness are significant quality-of-life features if you’ll be operating the system frequently.

Multiple Working Modes and Airflow Options

You’ll get four fan speeds—high, medium, low, and auto—so you can tailor airflow to your comfort. The dehumidifying mode is useful in humid climates or sticky summer weather: it reduces moisture while maintaining temperature control. The up-and-down air swing distributes conditioned air more evenly across the room, which helps avoid direct cold or hot drafts on you or your furniture.

The unit’s flexibility lets you choose comfort or energy savings as needed. For example, you can run fan-only mode on milder days to circulate air without engaging the compressor.

Installation and What the Included Kit Covers

The product includes an installation kit, which typically contains line set, mounting plate or bracket, basic wiring components, and drain tubing. Because this is a 115V system, it may plug into a standard dedicated circuit or require a simple circuit installation rather than a 208/230V hookup. That can make the electrical side easier for some households.

However, installing refrigerant lines and ensuring proper vacuum and refrigerant charge is specialized work. Even with a kit, you’ll often need to either hire a licensed HVAC technician or ensure you have the tools and certification to handle refrigerant safely and legally. You should confirm the kit’s exact contents before purchase so you know what additional supplies or professional services you might need.

Can you install it yourself?

You might be able to handle mounting the indoor unit, running small electrical lines, and routing the drain if you’re handy and experienced. But connecting refrigerant lines, performing a proper vacuum, and charging the system correctly generally should be done by an HVAC pro. If you attempt self-installation without appropriate skills or certification, you can risk poor performance, voided warranty, or code violations.

This image is property of Amazon.com.

Wiring and Electrical Considerations

Because the unit operates on 115V, you don’t need a 220/240V dedicated supply in most cases, but you will need a dedicated circuit and proper breaker sizing. Check your home’s electrical panel capacity and consult local codes. Running the unit on an undersized circuit can cause nuisance trips or electrical hazards. If you’re unsure, have a licensed electrician perform or inspect the electrical hookup.

Noise Levels and Indoor Comfort

Mini splits are generally quieter than window units. The indoor unit’s fan and the outdoor compressor make noise, but with inverter-driven operation you’ll often hear a lower, steady hum rather than frequent loud starts. That steady operation improves perceived comfort and reduces nighttime disturbance. The LED display can be turned off to avoid annoying light during sleep, and the unit’s various fan speeds let you lower noise further when you need quiet.

Maintenance and Filter Care

You’ll want to clean or replace the washable air filters regularly—typically every one to three months depending on usage and indoor air quality. Regular filter cleaning helps maintain airflow, energy efficiency, and indoor air quality. Periodic checks of the outdoor unit for debris, vegetation, or snow buildup are also important. Once per year, have a technician inspect refrigerant levels, electrical connections, and condensate drain to preserve peak performance and warranty coverage.

This image is property of Amazon.com.

Longevity and Reliability

If you follow the recommended maintenance schedule and have a professional handle refrigerant and major servicing, the system should provide many years of reliable climate control. The inverter technology reduces on/off cycling that can cause wear, and the outdoor unit’s build quality typically withstands normal weather conditions. Still, longevity depends on usage intensity, climate severity, and maintenance diligence.

Pros and Cons

You’ll want to weigh these to decide if this mini split suits your needs.

Pros:

• Efficient SEER2 19 and HSPF2 8.5 ratings reduce energy costs.
• 12,000 BTU cooling and 12,500 BTU heating covers spaces up to 750 sq. ft.
• 115V operation simplifies electrical requirements in many homes.
• Multiple modes, fan speeds, and timer for flexible comfort.
• Included installation kit can reduce accessory costs.
• Inverter-driven compressor improves comfort and reduces noise.

Cons:

• Installation still requires HVAC expertise for refrigerant handling, which adds cost.
• Operable heating down to 19.4°F is good for many climates but may need a backup heat source in very cold areas.
• The included kit contents can vary—confirm what’s provided to avoid surprise purchases.
• If you’re unfamiliar with wall mounting or drilling, you’ll likely need professional help.

Who is this unit ideal for?

This system is ideal if you:

• Need a primary climate control solution for a medium-sized living area, studio, large bedroom, or small apartment up to about 750 sq. ft.
• Prefer a more efficient alternative to window units or portable ACs, and want integrated heating.
• Want 115V compatibility to simplify electrical hookup.
• Value quiet indoor operation and steady temperature control. If you have a very large home or need whole-house HVAC, this single-zone unit won’t replace central systems, but it can serve as efficient supplemental conditioning.

This image is property of Amazon.com.

How it compares to other options

Compared to window units and portable ACs, you’ll get quieter operation, better energy efficiency, and heating capability with this mini split. Compared to central HVAC, it’s more efficient for single-zone control and avoids duct losses, but it’s not a whole-house replacement unless you install multiple indoor heads or a multi-zone system. If your priority is lower upfront cost and portability, a window or portable unit might be cheaper initially, but operating costs and comfort are typically worse over time.

Cost of Ownership: Sample Estimates

These examples are for rough planning and assume average usage and electricity rates:

• Cooling: 12,000 BTU ÷ SEER2 19 ≈ 0.63 kW. Running 8 hours/day at $0.15/kWh ≈ $22.70/month.
• Heating: 12,500 BTU ÷ HSPF2 8.5 ≈ 1.47 kW. Running 6 hours/day at $0.15/kWh ≈ $39.66/month. Actual costs depend on local electricity rates, thermostat usage, insulation, outdoor temperature, and occupancy patterns. In many cases you’ll see a meaningful reduction in energy bills vs. legacy systems, especially when you use ECO mode and thermostat scheduling.

Troubleshooting Common Issues

If the unit doesn’t cool or heat properly, check these basics first: confirm the power is on and breakers aren’t tripped, make sure the remote batteries are good, verify thermostat settings and modes, and check for dirty filters or blocked indoor/outdoor airflow. If you notice frost on lines or the outdoor unit, stop operation and call a technician—frost can indicate refrigerant or airflow issues. Strange noises may point to loose mounting, debris in the outdoor unit, or fan motor problems; schedule service if you can’t identify an easy fix.

Error codes and what to do

If the display shows an error code, consult the manual to identify the meaning. Common codes often relate to communication errors, sensor issues, or high/low refrigerant pressure. For anything beyond simple resets (power cycle, checking connections), contact an HVAC professional to diagnose and repair, especially for refrigerant-related faults.

Safety and Warranty Considerations

Always follow the safety guidelines in the manual regarding electrical connections, refrigerant handling, and outdoor unit placement. Improper installation can void the warranty, so keep records of professional installations and receipts. Confirm the warranty duration and coverage for both parts and labor, and check if registration is required to activate full warranty benefits.

Placement Tips for Best Performance

Place the indoor unit on an interior wall away from direct sunlight and major heat sources for accurate sensing of room temperature. The outdoor unit should be on a level, stable pad with adequate clearance for airflow and service access; avoid locations that collect debris or snow. Position the indoor head so airflow can travel across the room rather than being blocked by furniture or plants, which helps the swing feature distribute air evenly.

Questions to Ask Before Buying

You’ll want to clarify a few things before purchase:

• Exactly what items are in the included installation kit?
• Does your home require any electrical upgrades to accommodate a dedicated circuit?
• Does installation require a permit or licensed installer in your area?
• What are the warranty terms and required maintenance for coverage? Asking these upfront avoids surprises and helps you budget for installation and service.

Alternatives to Consider

If you need multi-room coverage, look at multi-zone mini split systems that allow multiple indoor heads on one outdoor compressor. If your space is smaller than 400 sq. ft., a lower BTU unit may be more efficient. If you’re on a tight budget and only need summer cooling, a high-efficiency portable or window unit might be cheaper upfront, although long-term costs will likely be higher.

Real-World Use Cases

Living room or open-plan apartment: You’ll get consistent cooling and the option for heating without ductwork, ideal for retrofit situations. Home office or studio: Quiet indoor operation helps maintain concentration and comfort. Garage or workshop: If you want to condition a workspace frequently used during different seasons, the combined heating and cooling is useful and more efficient than space heaters or window units.

Final Verdict

If you’re looking for a single-zone solution that gives both reliable cooling and heating with strong energy efficiency, the Mini Split Ac/Heating System – 12000 BTU Ductless Mini Split Air Conditioner with Heat Pump, 19 SEER2 115V Energy Efficient Ac Unit Up to 750 Sq.Ft with Installation Kit is a compelling choice. You’ll benefit from inverter-driven comfort, multiple modes, and simplified electrical requirements, making it a good fit for medium-sized rooms and retrofit projects. Make sure you confirm the installation kit contents, plan for professional refrigerant work unless you’re certified, and evaluate whether the heating low-end temperature meets your climate needs. With proper installation and maintenance, this unit should give you efficient, quiet, year-round comfort.

Frequently Asked Questions

Q: Will this unit heat in below-freezing weather? A: The unit operates down to about 19.4°F (−7°C). It will provide heat in moderately cold conditions, but in climates with prolonged extreme cold you might want supplemental or backup heat.

Q: Can you use the included kit for all installations? A: The installation kit covers basic needs, but complex installs, long line runs, or unique wall assemblies may require additional materials. Confirm the kit contents and consult an installer if in doubt.

Q: How often should you clean the filters? A: Every 1–3 months is typical, with frequency depending on usage and indoor air quality. More frequent cleaning is prudent if you have pets, smokers, or dust issues.

Q: Does the unit require a special breaker? A: You should use a dedicated circuit with a properly sized breaker. The 115V operation makes the electrical requirement simpler, but confirm breaker size with the manual or an electrician.

Q: Is professional installation mandatory? A: Professional installation is strongly recommended for refrigerant handling, vacuuming, and proper charging. DIY installation may be possible for experienced individuals in areas that allow it, but it can void warranties or violate local codes if not done correctly.

If you want, you can tell me about your room dimensions, ceiling height, insulation quality, and local climate, and I’ll help you confirm if this 12,000 BTU unit is the best match for your situation.
